Thermal Management

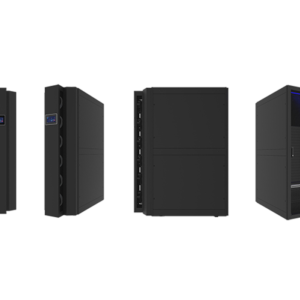

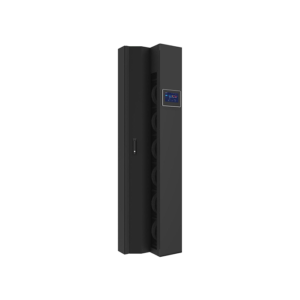

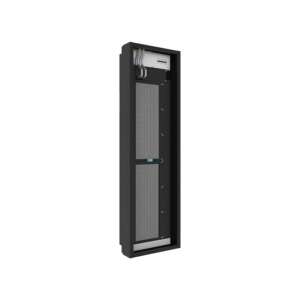

SOETECK Chilled-Water Rear Door Rack Cooling System, 28.9kW-65.8kW Capacity

The SOETECK Rear Door HEX CW Rack Cooling Syst…

Sales Contact View Details Models

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-DC-025	28.9kW	28.9kW	4800m³/h	600mm	380mm	2000mm	120kg
SY-DC-045	46.0kW	46.0kW	9000m³/h	600mm	380mm	2000mm	230kg
SY-DC-065	65.8kW	65.8kW	11400m³/h	600mm	380mm	2000mm	240kg

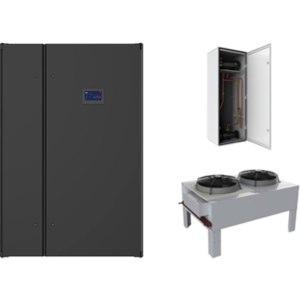

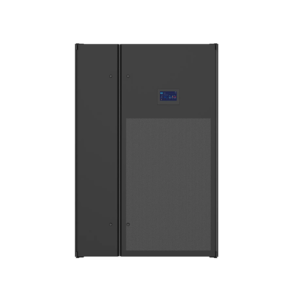

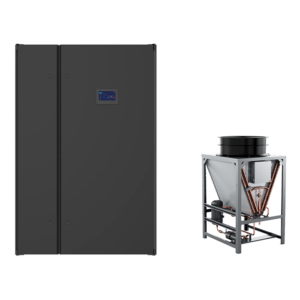

SOETECK Room-Mounted Pumped Refrigerant Cooling System, 32.5-122.9kW

The SOETECK Room-Mounted Pumped Refrigerant Co…

Sales Contact View Details Models

Models	Cooling Capacity	Sensible Capacity	Air Volume	Pump Power	Refrigerant	Width	Depth	Height	Weight
SY-W030-U/D	32.5kW	29.3kW	8325m³/h	0.55kW	R410A	1126mm	990mm	1975mm	433kg
SY-W035-U/D	37.7kW	34.0kW	8620m³/h	0.55kW	R410A	1126mm	990mm	1975mm	438kg
SY-W040-U/D	41.8kW	38.1kW	10500m³/h	0.55kW	R410A	1326mm	990mm	1975mm	468kg
SY-W050-U/D	50.0kW	45.0kW	12400m³/h	0.55kW	R410A	1326mm	990mm	1975mm	528kg
SY-W045-U/D	43.5kW	39.2kW	10500m³/h	0.55kW	R410A	1326mm	990mm	1975mm	478kg
SY-W055-U/D	53.1kW	47.8kW	12400m³/h	0.55kW	R410A	1326mm	990mm	1975mm	568kg
SY-W065-U/D	65.1kW	58.8kW	16650m³/h	0.55kW	R410A	1826mm	990mm	1975mm	688kg
SY-W070-U/D	71.1kW	64.0kW	17240m³/h	0.55kW	R410A	1826mm	990mm	1975mm	718kg
SY-W080-U/D	83.6kW	75.3kW	21000m³/h	0.55kW	R410A	2226mm	990mm	1975mm	788kg
SY-W090-U/D	92.1kW	83.6kW	22600m³/h	0.55kW	R410A	2226mm	990mm	1975mm	866kg
SY-W0100-U/D	100.9kW	91.1kW	24800m³/h	0.55kW	R410A	2226mm	990mm	1975mm	888kg
SY-W110-U/D	110.9kW	97.1kW	26200m³/h	0.55kW	R410A	2426mm	990mm	1975mm	910kg
SY-W120-U/D	122.9kW	105.2kW	27100m³/h	0.55kW	R410A	2426mm	990mm	1975mm	980kg

Show more

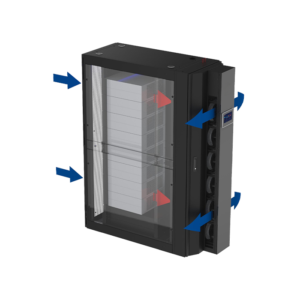

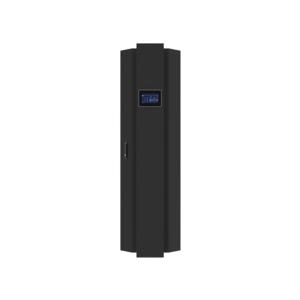

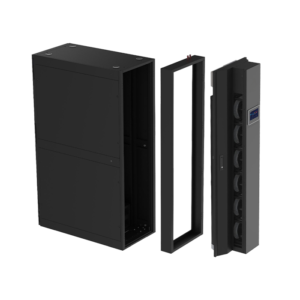

SOETECK Rear Door HEX DX Rack Cooling System, 21.2kW-31.1kW Direct Expansion Capacity

The SOETECK Rear Door HEX DX Rack Cooling Syst…

Sales Contact View Details Models

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-DA-020	21.2kW	21.2kW	4920m³/h	600mm	380mm	2000mm	115kg
SY-DA-030	31.1kW	31.1kW	5800m³/h	600mm	380mm	2000mm	140kg

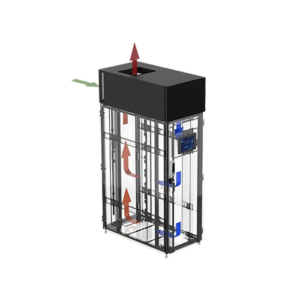

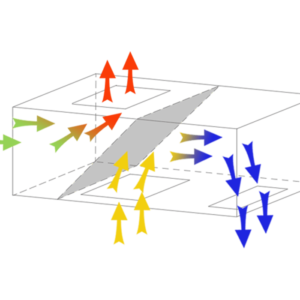

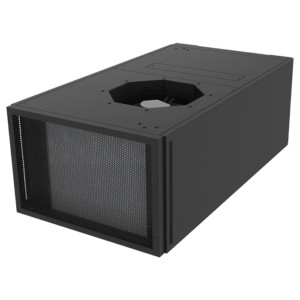

SOETECK Top-mount Packaged Rack Cooling System, 2.5kW – 5.5kW Capacity, suitable for micro/mini modular data center

The SOETECK Top-mount Package Rack Cooling Sys…

Sales Contact View Details Models

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-TA-002	2.5kW	2.5kW	500m³/h	600mm	1100mm	390mm(9U)	50kg
SY-TA-003	3.5kW	3.5kW	600m³/h	600mm	1100mm	390mm(9U)	55kg
SY-TA-005	5.5kW	5.5kW	1200m³/h	600mm	1100mm	521mm(12U)	65kg

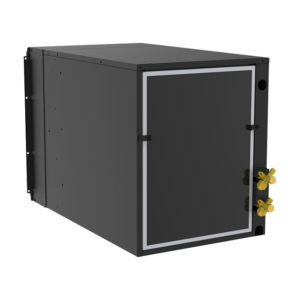

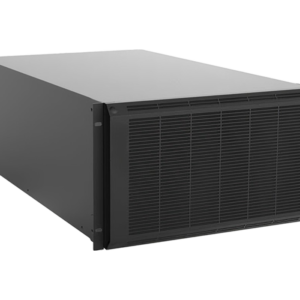

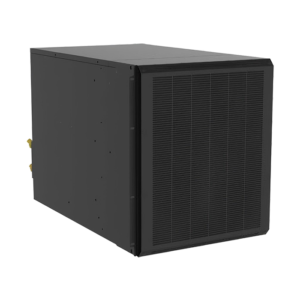

SOETECK Rack Cooling System, 3.5kW-12.5kW Capacity, Split-type Cooling Unit

The SOETECK Rack Cooling System is a flexible …

Sales Contact View Details Models

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-JAF-003	3.5kW	3.5kW	750m³/h	483mm	828mm	266mm(6U)	31kg
SY-JAF-005	6.5kW	6.5kW	1100m³/h	483mm	828mm	355mm(8U)	43kg
SY-JAF-007	8.5kW	8.5kW	1200m³/h	483mm	828mm	445mm(10U)	52kg
SY-JAF-012	12.5kW	12.5kW	2400m³/h	483mm	828mm	533mm(12U)	70kg
