Thermal Management

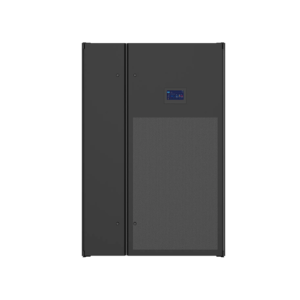

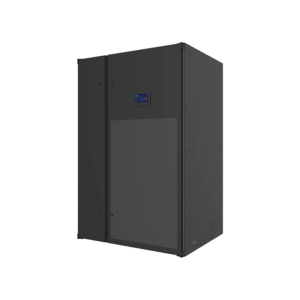

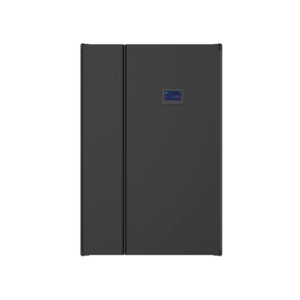

SOETECK DX Water-cooled Room Cooling System, 32.5kW–122.9kW Capacity

The SOETECK Room Water-cooled DX Cooling Syste…

Sales Contact View Details Models

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-SW30UD	32.5kW	29.3kW	8325m³/h	1126mm	990mm	1975mm	433kg
SY-SW35UD	37.7kW	34.0kW	8620m³/h	1126mm	990mm	1975mm	438kg
SY-SW40UD	41.8kW	38.1kW	10500m³/h	1326mm	990mm	1975mm	468kg
SY-SW50UD	50.0kW	45.0kW	12400m³/h	1326mm	990mm	1975mm	528kg
SY-DW45UD	43.5kW	39.2kW	10500m³/h	1326mm	990mm	1975mm	478kg
SY-DW55UD	53.1kW	47.8kW	12400m³/h	1826mm	990mm	1975mm	568kg
SY-DW65UD	65.1kW	58.8kW	16650m³/h	1826mm	990mm	1975mm	688kg
SY-DW70UD	71.1kW	64.0kW	17240m³/h	2226mm	990mm	1975mm	718kg
SY-DW8OUD	83.6kW	75.3kW	21000m³/h	2226mm	990mm	1975mm	788kg
SY-DW9OUD	92.1kW	83.6kW	22600m³/h	2426mm	990mm	1975mm	866kg
SY-DW100UD	100.9kW	91.1kW	24800m³/h	2426mm	990mm	1975mm	888kg
SY-DW110UD	110.9kW	97.1kW	26200m³/h	2426mm	990mm	1975mm	910kg
SY-DW120UD	122.9kW	105.2kW	27100m³/h	2426mm	990mm	1975mm	980kg

Show more

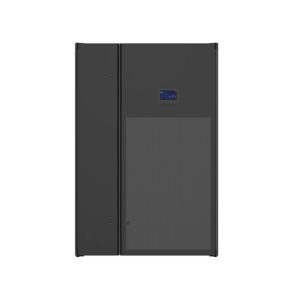

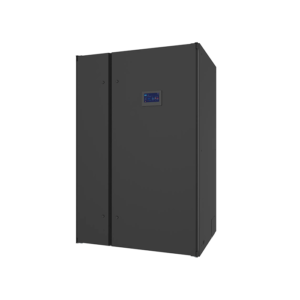

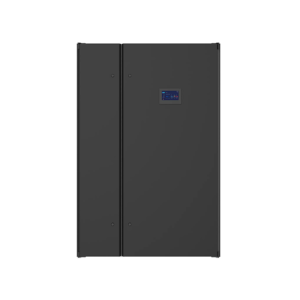

SOETECK DX Air-cooled Room Cooling System, 32.5kW-120kW Capacity, Up/Down Flow

The SOETECK Room Air-cool DX Cooling System, o…

Sales Contact View Details Models

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-SA30UD	32.5kW	29.3kW	8325m³/h	1126mm	990mm	1795mm	433kg
SY-SA35UD	37.7kW	34.0kW	8620m³/h	1126mm	990mm	1795mm	438kg
SY-SA40UD	41.8kW	38.1kW	10500m³/h	1326mm	990mm	1795mm	468kg
SY-SA50UD	50.0kW	45.0kW	12400m³/h	1326mm	990mm	1795mm	528kg
SY-DA45UD	43.5kW	39.2kW	10500m³/h	1326mm	990mm	1795mm	478kg
SY-DA55UD	53.1kW	47.8kW	12400m³/h	1326mm	990mm	1795mm	568kg
SY-DA65UD	65.1kW	58.8kW	17240m³/h	1826mm	990mm	1795mm	688kg
SY-DA70UD	71.1kW	64.0kW	16650m³/h	1826mm	990mm	1795mm	718kg
SY-DA80UD	83.6kW	75.3kW	21000m³/h	2226mm	990mm	1795mm	788kg
SY-DA90UD	92.1kW	83.6kW	22600m³/h	2226mm	990mm	1795mm	866kg
SY-DA100UD	100.9kW	91.1kW	24800m³/h	2226mm	990mm	1795mm	888kg
SY-DA110UD	110.9kW	97.1kW	26200m³/h	2426mm	990mm	1795mm	910kg
SY-DA120UD	122.9kW	105.2kW	27100m³/h	2426mm	990mm	1795mm	980kg

Show more

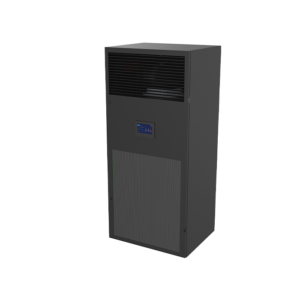

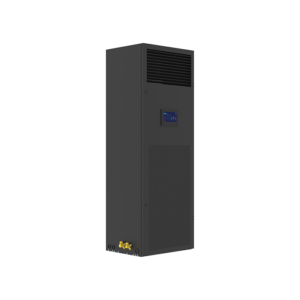

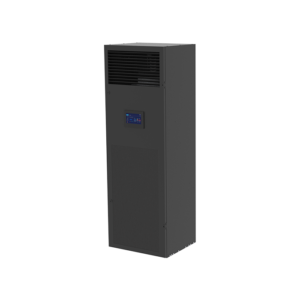

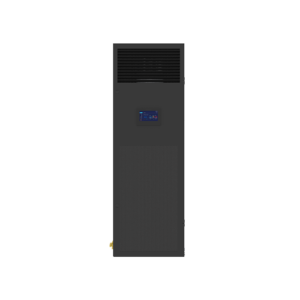

SOETECK DX Air-cooled Room Cooling System, 7.5kW-27.5kW Capacity

The SOETECK Room Air-cooled DX Cooling System,…

Sales Contact View Details Models

Models	Cooling Capacity	Sensible Capacity	Air Volume	Width	Depth	Height	Weight
SY-MA07UD	7.5kW	6.8kW	2250m³/h	550mm	450mm	1750mm	128kg
SY-MA12UD	12.5kW	11.3kW	2850m³/h	650mm	450mm	1850mm	178kg
SY-MA17UD	17.5kW	15.9kW	5000m³/h	750mm	700mm	1900mm	300kg
SY-MA20UD	21.2kW	19.1kW	6200m³/h	750mm	700mm	1900mm	318kg
SY-MA25UD	27.5kW	25.0kW	6700m³/h	850mm	700mm	1900mm	338kg

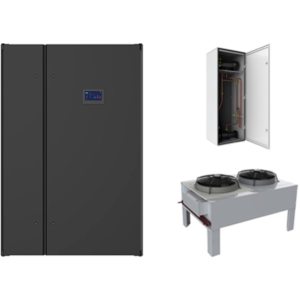

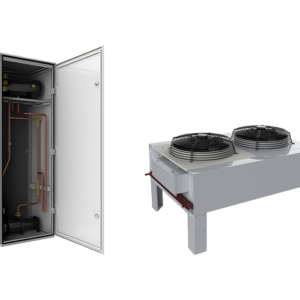

SOETECK Customizable Cabinet for Housing Refrigerant Pump

The SOETECK Customizable Cabinet for Housing R…

Sales Contact View Details

SOETECK V-Shaped Integrated Outdoor Air Cooled Condenser

The SOETECK V-Shaped Integrated Outdoor Air Co…

Sales Contact View Details Models

Models	Fan Type	Fan Count	Width	Depth	Height	Weight
SY-RCM-DJES45	EC	1	1050mm	1200mm	1620mm	221.0kg
SY-RCM-DJES52	EC	1	1050mm	1200mm	1620mm	222.0kg
SY-RCM-DJES58	EC	1	1050mm	1200mm	1620mm	240.0kg
SY-RCM-DJES66	EC	1	1050mm	1200mm	1620mm	244.0kg
SY-RCM-DJES74	EC	1	1050mm	1200mm	1620mm	248.0kg
SY-RCM-DJES83	EC	1	1050mm	1200mm	1620mm	264.0kg
SY-RCM-DJES89	EC	1	1050mm	1200mm	1620mm	265.0kg
SY-RCM-DJES96	EC	1	1050mm	1200mm	1620mm	267.0kg
SY-RCM-DJES112	EC	2	1050mm	2200mm	1620mm	325.0kg
