SOETECK High-frequency Online UPS, 100-300kVA, Tower, PF1

The SOETECK SY-T Series Online High-frequency UPS, 100-300kVA, Tower, PF1 provides reliable, energy-efficient power protection for critical systems. Supporting three-phase input and output, it delivers a wide input voltage range of 110-300V and up to 98.5% efficiency in ECO mode. With modular, pluggable power modules, low THD (<4%), and comprehensive monitoring via a 7-inch touchscreen LCD, it is ideal for large-scale industrial and IT applications.

UPS Structure: Online Double Conversion
Input Voltage: 3x380/400/415VAC
Output Voltage: 3 x 380/400/415 VAC
Power factor: ≥ 0.99 @ 100% load

Talk to an Expert Download Brochure

Overview

The SOETECK SY-T Series Online High-frequency UPS, 100-300kVA, Tower, PF1 is a high-performance, transformerless power protection solution tailored for large-scale and mission-critical applications. Featuring a modular, pluggable power design and true double-conversion technology, this series ensures clean, stable, and uninterrupted power delivery, safeguarding sensitive systems from voltage fluctuations and power disturbances.

Engineered for three-phase input and three-phase output (3P/3P), the UPS supports capacities ranging from 100kVA to 300kVA with parallel redundancy capability for enhanced reliability. With a wide input voltage range of 110-300V (at 50% load) and high efficiency of up to 98.5% in ECO mode, it delivers exceptional energy savings and operational cost reductions. The system’s low harmonic distortion (THD <4%) ensures stable performance even for non-linear loads.

Equipped with a user-friendly 7-inch touchscreen LCD, flexible battery configuration options, and adjustable charging currents, the SOETECK SY-T Series offers unparalleled monitoring and control. Additional features, such as generator compatibility and emergency power off (EPO) functions, make it an ideal choice for data centers, healthcare facilities, industrial automation systems, and other high-demand environments.

Key Features

Advanced Power Protection

True double-conversion technology ensures clean, stable power, safeguarding sensitive equipment.
Power factor 1.0 maximizes energy utilization and supports full-rated power output.
Three-phase input and output (3P/3P) configuration for high-capacity systems.

High Energy Efficiency

Delivers up to 98.5% efficiency in ECO mode, reducing energy costs and environmental impact.
Wide input voltage range of 110-300V at 50% load ensures compatibility with unstable grids.
Low harmonic distortion (<4% THD) enhances performance for non-linear loads.

Flexible and Scalable Design

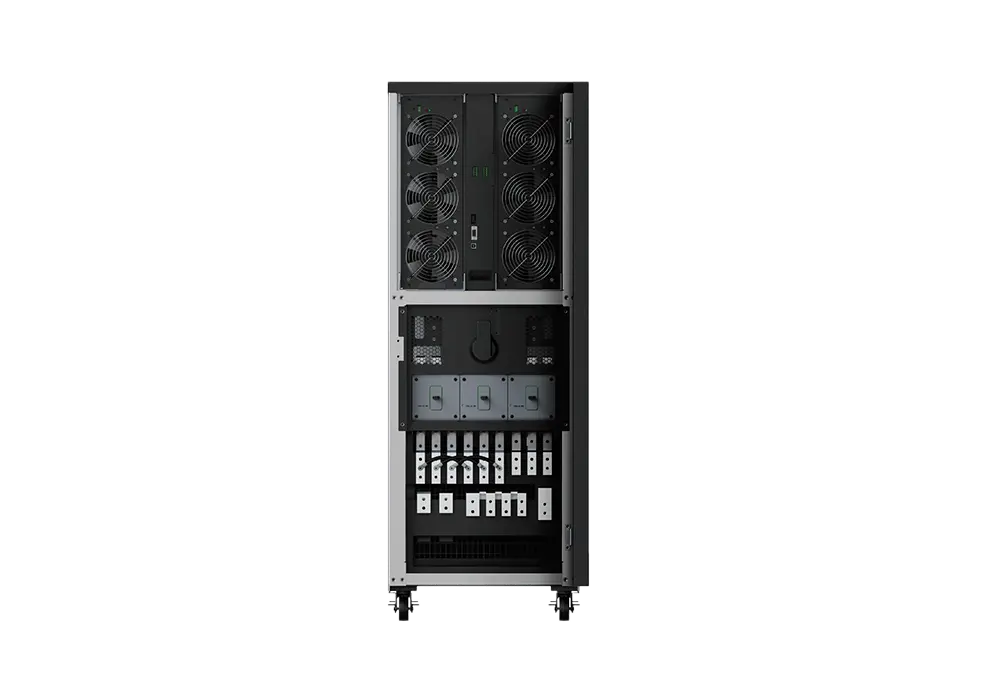

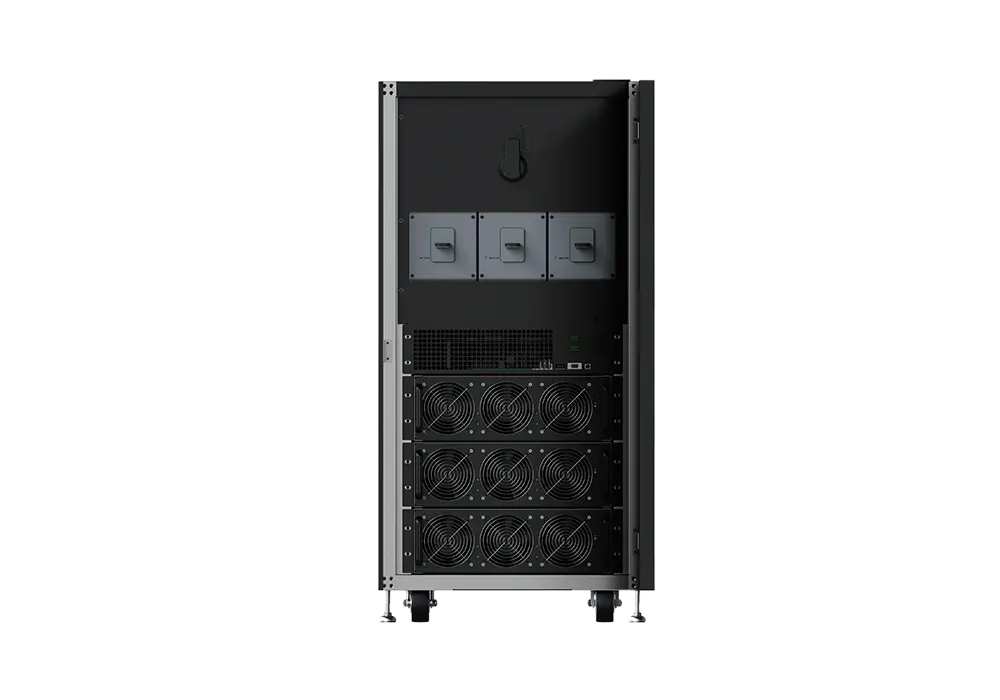

Modular, pluggable power modules allow for effortless maintenance and scalability.

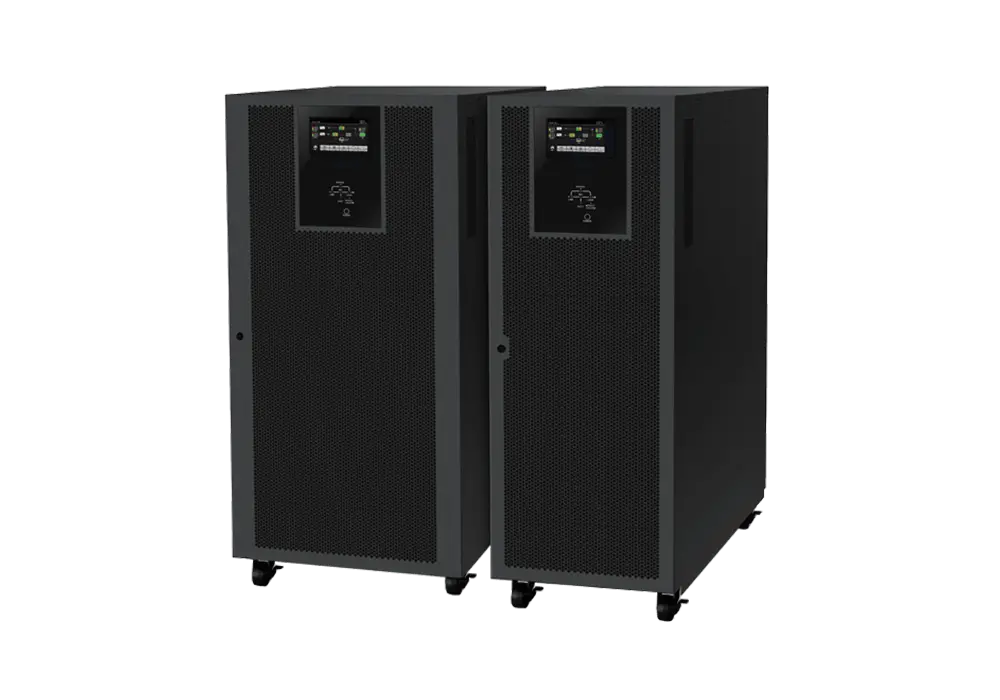

Parallel operation supports up to 4 units, enabling redundancy and capacity expansion.
Flexible battery configurations and adjustable charging currents up to 54A provide runtime adaptability.

Comprehensive Monitoring and Control

7-inch touchscreen LCD provides real-time updates on power status, load conditions, and system diagnostics.
Remote monitoring via SNMP, USB, and RS-232 interfaces ensures operational visibility.
Built-in bypass switches enable seamless system maintenance without power interruptions.

Reliable Performance and Safety

Supports overload handling of 110% for 1 hour, ensuring uninterrupted operation during demand surges.
Integrated emergency power off (EPO) function enhances safety in critical conditions.
Complies with global safety standards, including IEC/EN 62040-1 and IEC/EN 62040-2 Category C3.

Applications

Data Centers
Telecommunication Networks
Healthcare Facilities
Industrial Automation Systems
Banking and Financial Systems
Critical Manufacturing Processes

Model Range

The SOETECK SY-T Series Online High-frequency UPS, 100-300kVA, Tower, PF1 offers a range of models designed for diverse operational needs. The 100kVA and 120kVA models are ideal for medium-scale setups, providing reliable power in a compact form factor. For large-scale installations, the 180kVA and 200kVA models deliver enhanced capacity, extended runtimes, and superior performance. With a wide input voltage range of 110-300V, low THD (<4%), and high efficiency of up to 98.5%, these models are perfect for demanding environments. Modular power configurations and comprehensive monitoring options ensure scalability and ease of management.

Models	Power Rating	Input Voltage Range	Output Voltage Range	Efficiency	Wiring
SYT100kVA	100kVA / 100kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out
SYT120kVA	120kVA / 120kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out
SYT180kVA	180kVA / 180kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out
SYT200kVA	200kVA / 200kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out
SYT240kVA	240kVA / 240kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out
SYT300kVA	300kVA / 300kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out

Technical Specifications


Capacity	100kVA/100kW ; 120kVA/120kW ; 180kVA/180kW ; 200kVA/200kW ; 240kVA/240kW ; 300kVA/300kW
Type	External Battery
Parallel quantity	4

Nominal Voltage	3x380/400/415VAC ( 3ph N )
Voltage Range	110-300VAC -50% load; 176-276VAC-100% load
Frequency	50/60Hz (Automatic detection)
Frequency Range	40Hz ~ 70Hz
Power Factor	≥ 0.99 @100 %Load
Harmonic Distortion (THDi)	< 4% @100 %Load

Nominal Voltage	3 x 380/400/415 VAC(3PH N)
Voltage Regulation (Steady State)	≤± 1% nominal (balanced load); ≤± 2% nominal (unbalanced load)
Frequency	50/60Hz
Frequency Range (Synchronization Range)	46 ~ 54 Hz or 56 ~ 64 Hz
Overload Capacity	100-110% 60 minutes, 111-125% 10 minutes, 126% -150% 1 minute, >150 0ms
Harmonic Distortion	≤ 2% THD (Linear Load); ≤ 4% THD (Nonlinear Load)

Rated Voltage	3 x 380/400/415 VAC(3PH N)
Voltage Range	-30% ~ 20%
Frequency Range (Synchronization Range)	46 ~ 54 Hz or 56 ~ 64 Hz
Overload Capacity	100-110% 60 minutes, 111-125% 10 minutes, 126% -150% 1 minute, >150 0ms

AC Mode	95.5%
ECO Mode	98.5%
Battery Mode	94.5%

Nominal Voltage	/-192V ~ /-240V (Optional)
Maximum Voltage	/-240V (12V x 40 pieces)
Minimum Voltage	/-192V (12V x 32 pieces)
Float Charging Voltage	2.28V/battery cell (2.25 ~ 2.33 optional)
Uniform Charging Voltage	2.35V/battery unit
Temperature Compensation	Support
Maximum Charging Current (Per Power Module)	24A (Adjustable)/36A (Adjustable)/54A (Adjustable)/54A (Adjustable)/72A (Adjustable)/90A (Adjustable)

IP Degree	IP20
Cabinet Size D x W x H (mm)	10004301200 / 10004301200 / 10006001200 / 10006001200 / 11006001475 / 11006001475
Net Weight (kg)	169 / 169 / 249 / 249 / 360 / 396

Operate Temperature	0-40℃
Relative Humidity	<95% non condensing
Altitude	Nominal power<1000m

Smart RS-232 / USB	Supports Windows® Family, Linux and MAC
Optional SNMP	SNMP card and browser power management

Safety	IEC/EN 62040-1
Electromagnetic Compatibility	IEC/EN 62040-2 Category C3
