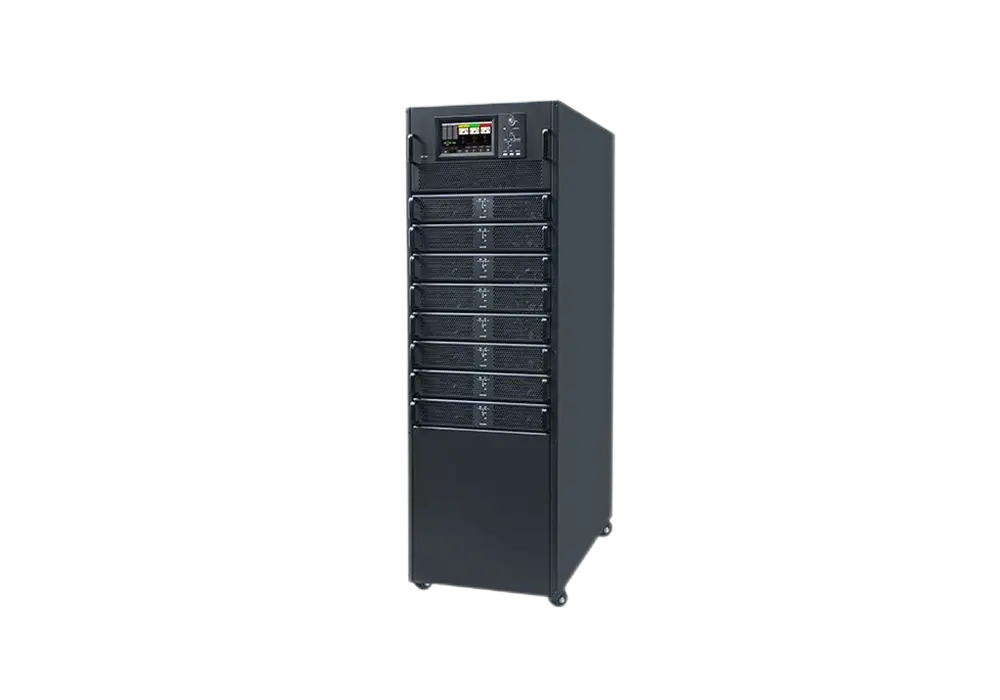

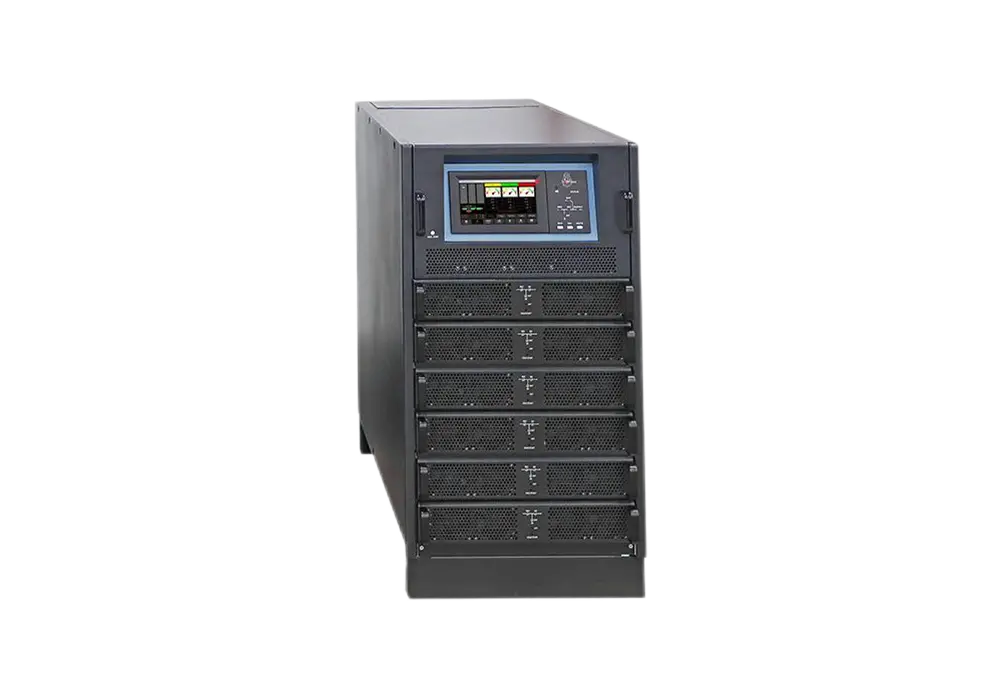

SOETECK SY-M Series UPS, Modular Online UPS 100kVA-200kVA, Rack & Tower Mount, 25/30kVA Power Module
The SOETECK SY-M Series UPS, Online Modular UPS 100kVA-200kVA offers scalable power protection with modular 25/30kVA power modules. Supporting both rack and tower mount installations, it delivers up to 96% efficiency with low THDi. Its hot-swappable design and intuitive monitoring ensure uninterrupted, clean, and reliable power for mission-critical applications.
- UPS Structure
- Online Double Conversion
- Input Voltage
- 380/400/415VAC
- Input PF
- > 0.99
- Output Voltage
- 380/400/415VAC
Overview
The SOETECK SY-M Series UPS, Online Modular UPS 100kVA-200kVA is an advanced, scalable power protection solution tailored for medium-sized critical applications. Featuring modular 25/30kVA power modules, it supports flexible rack and tower mount configurations, providing adaptable deployment options to meet various infrastructure needs.
With a highly efficient 3-level inverter and robust 3-in 3-out (three-phase input/output) design, the system delivers up to 96% efficiency under standard operation, reducing energy costs. The low THDi <3% ensures clean, stable power output, protecting sensitive equipment and enhancing power quality.
The SOETECK SY-M Series UPS integrates intelligent power management, including hot-swappable 25/30kVA power modules for easy maintenance and uninterrupted operation. With its compact design, high overload capability, and advanced monitoring via the LCD LED touchscreen, it ensures reliable, efficient, and intelligent power protection for data centers, financial institutions, and industrial facilities.
Key Features
Modular and Scalable Power Design

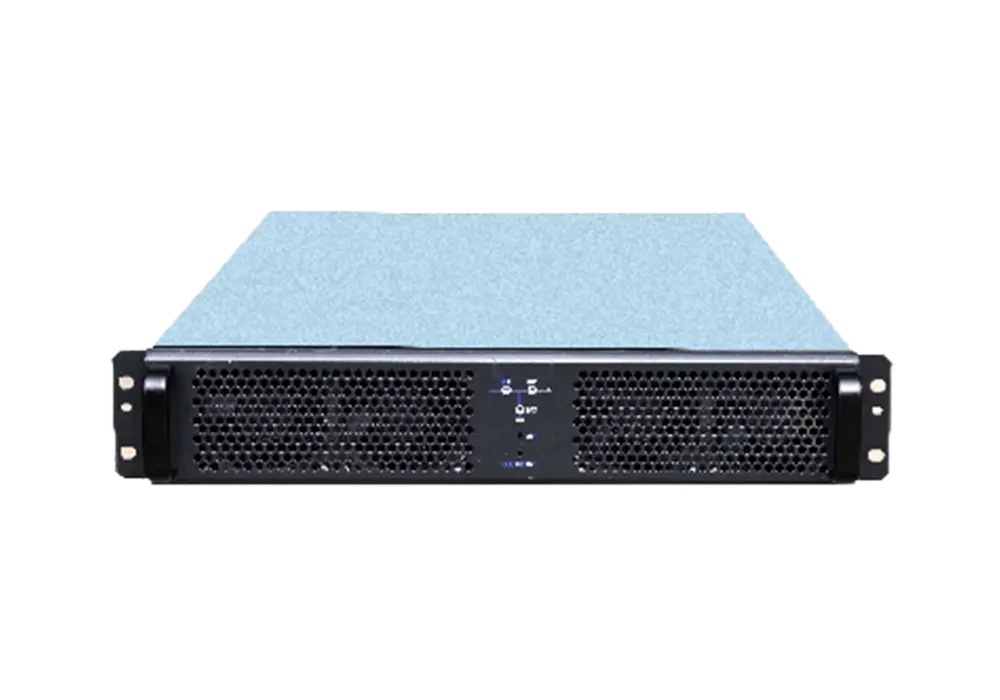

- Modular 25/30kVA power modules for seamless scalability up to 200kVA
- Supports rack and tower mount installations for flexible deployment
- Compact design minimizes space usage while ensuring high performance
High Efficiency and Power Quality
- Up to 96% efficiency reduces energy consumption and operational costs
- Low Total Harmonic Distortion (THDi <3%) ensures clean and stable power output
Advanced Power Protection
- Robust 3-in 3-out (three-phase input/output) architecture ensures stable and reliable power delivery
- High overload capacity with intelligent bypass switching:
- 110% load: switches to bypass after 1 hour
- 125% load: switches to bypass after 10 minutes
- 150% load: switches to bypass after 1 minute
- >150% load: switches to bypass after 200 milliseconds
Hot-Swappable Maintenance
- Modular design allows hot-swappable power modules for maintenance without downtime
- Ensures uninterrupted operation and maximum availability
Intelligent Monitoring and Control
- Equipped with a user-friendly LCD LED touchscreen for real-time monitoring and diagnostics
- Supports multiple communication interfaces: RS232, RS485, SNMP for remote management
Applications
- Medium-sized Data Centers
- Financial Institutions
- Telecommunications Systems
- Industrial Manufacturing
- Government Facilities
- Healthcare and Medical Systems

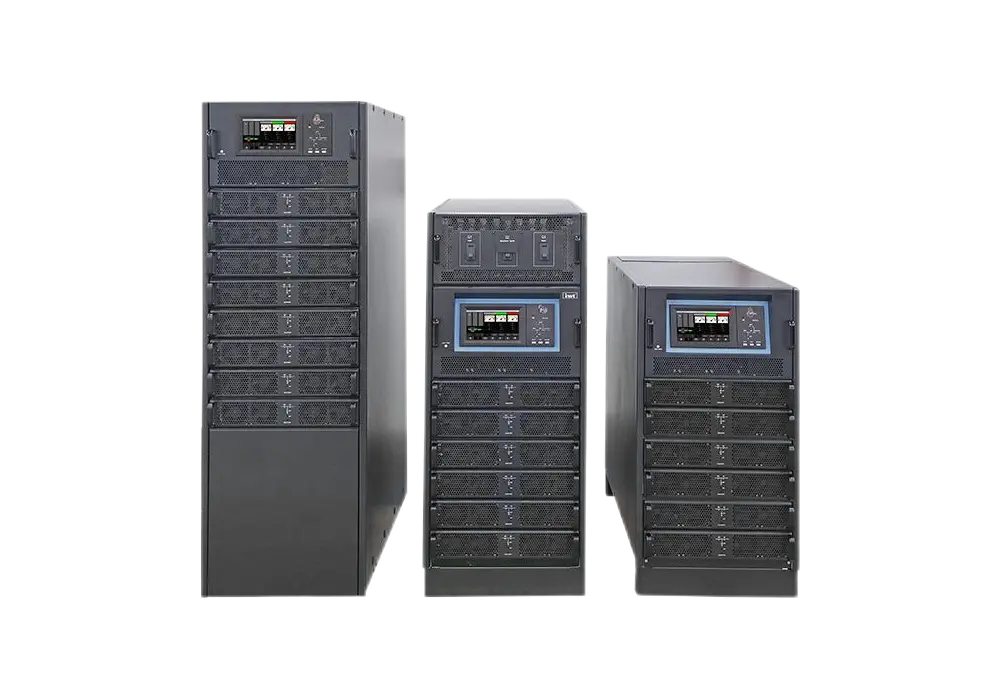

Model Range
The SOETECK SY-M Series UPS, Online Modular UPS 100kVA-200kVA features modular 25/30kVA power modules designed for seamless scalability. Supporting rack and tower mount installations, it ensures flexible deployment for diverse environments. With up to 96% efficiency, low THDi <3%, and high overload capacity, this system provides clean, reliable, and efficient power protection for medium-sized applications, ensuring operational stability and energy savings.
| Models | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Wiring |
|---|---|---|---|---|---|
| SYM150/25C | 150kva | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 95.5% ( Normal mode ) ; 95% ( Battery mode ) | 3 phase N PE |
| SYM200/25C | 200kVA | 304~485VAC ( Line Voltage ) fully loaded; 304~138AVC ( Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC ( Line Voltage ) | 95.5% ( Normal mode ) ; 95% ( Battery mode ) | 3 phase N PE |
Technical Specifications
| Input wiring | 3-phase N wire PE |
|---|---|
| Input voltage | 380/400/415VAC (Line voltage) |
| Input frequency | 50/60Hz |
| Power factor | >0.99 |
| Current distortion rate | THDi<3% (100%linear load) |
| Voltage range | 304~485VAC (Line voltage) fully loaded, 304~138AVC (Line voltage) Linear derating of load from 100% to 40% |
| Frequency range | 40 - 70Hz |
| Battery voltage | ± 240VDC (30~50 cells) |
| Charging power | 20% *active power |
| Charging voltage accuracy | ± 1% |
| Bypass voltage | 380/400/415VAC (Line voltage) |
| Voltage range | -20%~ 15% |
| Bypass frequency range | 50/60Hz (Rated frequency) ±1Hz, ±3Hz, ±5Hz |
| Rated output voltage | 380/400/415VAC (Line voltage) |
| Rated frequency | 50/60Hz |
| Output power factor | 0.9 |
| Voltage accuracy | ±1.0% |
| Output dynamic response | <5% (20% - 80% - 20%step load) |
| Dynamic recovery time | <20ms (0% - 100% - 0%step load) |
| Output total harmonic Distortion (THDu) | <1% (Linear Load), <5.5% (Nonlinear load) |
| Inverter overload | 110%, switch to bypass after 1 hour; 125%, switch to bypass after 10 minutes; 150%, switch to bypass after 1 minute 150%, switch to bypass after 200ms |
| Frequency accuracy | 0.1% |
| Tracking range | Can be set, ± 0.5Hz~± 5Hz, default ± 3Hz |
| Tracking rate | Can be set, 0.5Hz/S~3Hz/S, default 0.5Hz/S |
| Ratio of peak values | 3 : 1 |
| Three phase phase accuracy | 120° ± 0.5° |
| System efficiency | Normal mode ≥ 95%, economic mode ≥ 99% |
| Battery mode efficiency | ≥ 95% |
| Display | LCD LED, Touch screen control panel |
| Language | Proficient in multiple languages, including Simplified Chinese, Traditional Chinese, English, Korean, French, Polish, Japanese, Russian, Spanish, Italian, and Portuguese |
| Protection grade | IP20 |
| Communication interface | RS232、RS485、 Contact point, SNMP card, EPO, generator interface |
| Operating temperature | 0-40℃ |
| Storage temperature | -25℃～70℃ |
| Relative humidity | 0-95% (no condensation) |
| Noise (dB) | <66dB |
| Option | SNMP network communication card, lightning protection module, battery temperature compensator, mobile SMS alarm, dustproof, dual input unit, seismic components |
